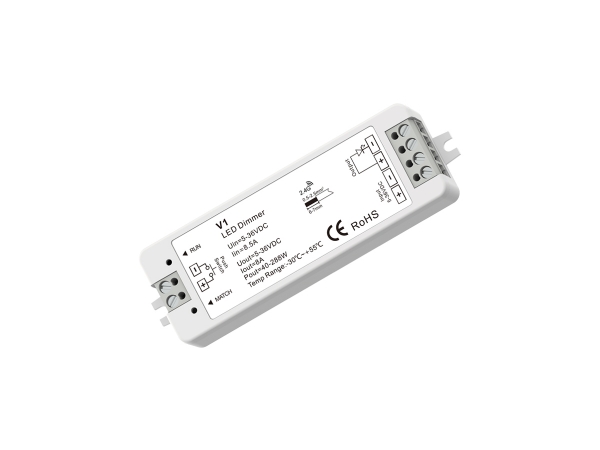

Single Color LED Controller

1 Channel / Step-less dimming / RF remote / Push Dim

Features

● Match with Easinghome‘s 2.4G dimming remote control, one RF controller accept up to 10 remote control.
● Auto-transmitting function: Controller automaticly transmit signal to another controller with 30m control distance.
● Synchronize on multiple number of controllers.
● Connect with external push switch to achieve on/off and dimming function.

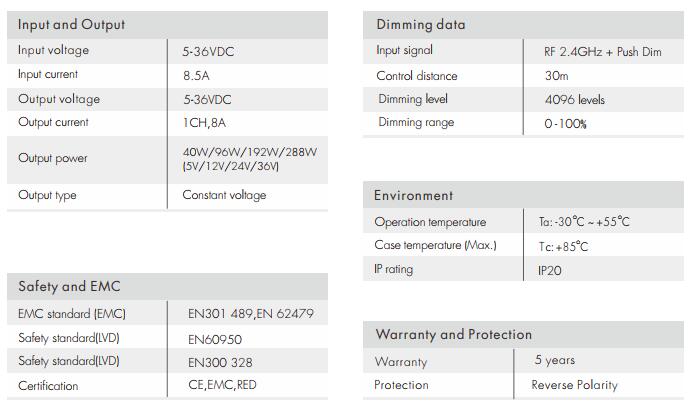

Technical Parameters

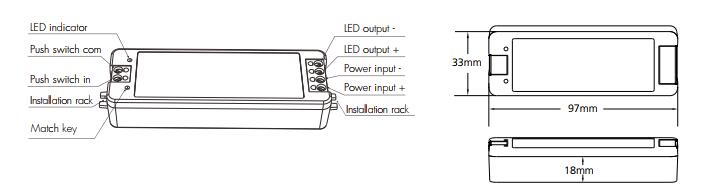

Mechanical Structures and Installations

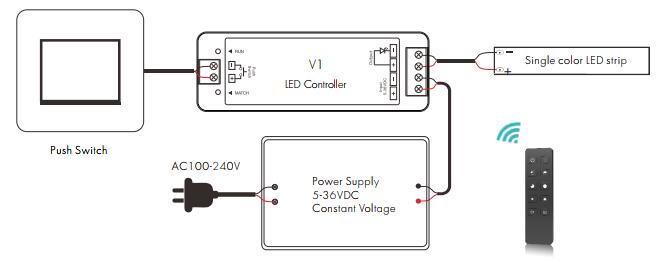

Wiring Diagram


Match Remote Control (two match ways)

End user can choose the suitable match/delete ways. Two options are offered for selection:


Use the controller’s Match key

Match:
Short press match key, immediately press on/off
key (single zone remote) or zone key (multiple zone
remote) of the remote.

Delete:
Press and hold match key for 5s to delete all match,
The light blinks 5 times means all matched remotes
were deleted.

Use Power Restart

Match:
Switch off the power, then switch on power again,
immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 3 times on the remote.
The light blinks 3 times means match is successful. .

Delete:
Switch off the power, then switch on power again,
immediately short press on/off key (single zone remote)
or zone key (multiple zone remote) 5 times on the remote.
The light blinks 5 times means all matched remotes were
deleted.

Push Dim Function
● Short press: Turn on or off light.
● Long press (1-6s): Press and hold to step-less dimming, With every other long press, the light level goes to the opposite direction.
● Dimming memory: Light returns to the previous dimming level when switched off and on again, even at power failure.

Dimming Curve

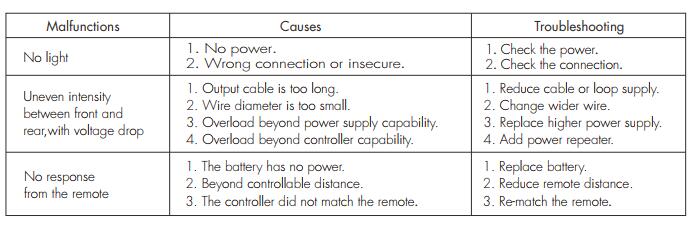

Malfunctions Analysis & Troubleshooting
